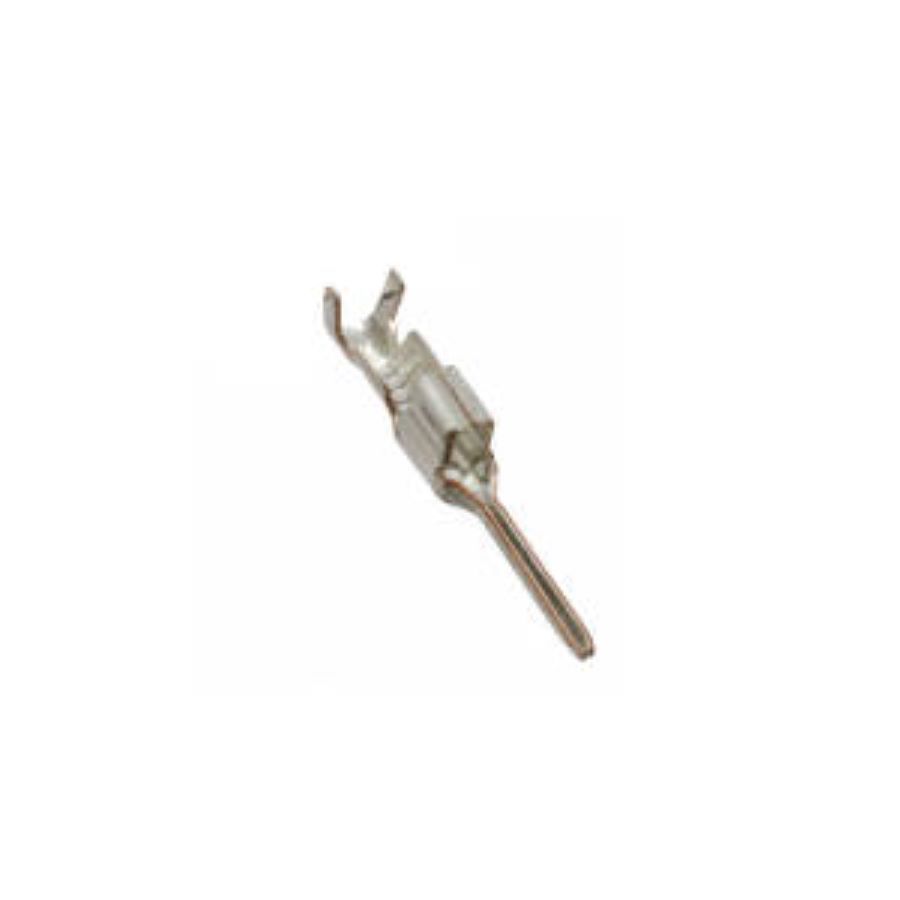

917765-1
Manufacturer:
TE Connectivity
Mfr.Part #:
917765-1
Datasheet:
Description:
Terminals Cable 26 AWG Male
| Parameter | Value |
|---|---|
| Length | 13.9 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 3 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Shielding | Unshielded |
| Connector Type | Tab |
| Wire/Cable Gauge | 26 AWG |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Wire |
| Contact Resistance | 20 mΩ |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Termination Style | Crimp |
| Insulation Diameter | 1.5 mm |
| Plating Thickness | 200 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 29664
Distributors
pcbx
pcbxUnit Price$0.26738
Ext.Price$0.26738
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26738 | $0.26738 |
| 10 | $0.13369 | $1.33690 |
| 50 | $0.10284 | $5.14200 |
| 100 | $0.07911 | $7.91100 |
| 500 | $0.06085 | $30.42500 |
| 1000 | $0.04681 | $46.81000 |
| 3000 | $0.03601 | $108.03000 |
| 5000 | $0.02770 | $138.50000 |
| 10000 | $0.02443 | $244.30000 |
| 30000 | $0.02154 | $646.20000 |
